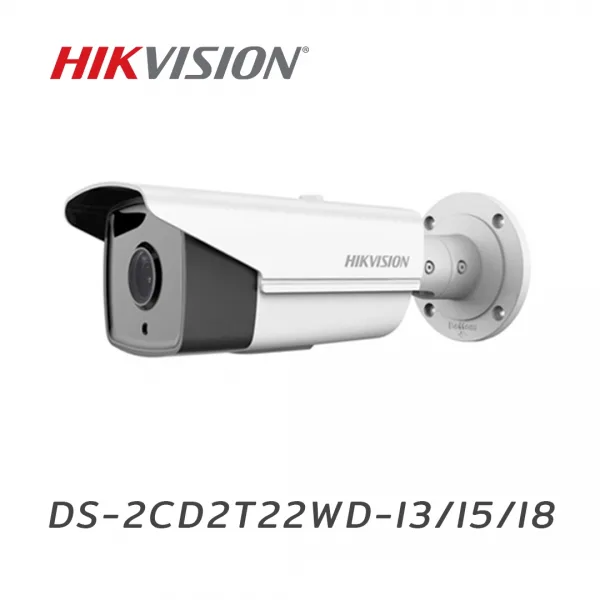

HIKVISION : DS-2CD2T22WD-I3/I5/I8

1/2.8” Progressive Scan CMOS l Up to 2 megapixel resolution l Full HD1080p real-time video l 120dB Wide Dynamic Range l 3D DNR l EXIR high performance LEDs l Up to 30/50/80 meters IR range l 12V DC±25% & PoE(802.3af Class3) l Support H.264+ l IP67

คำอธิบาย

Camera DS-2CD2T22WD-I3
Image Sensor: | 1/2.8″ Progressive Scan CMOS
Min. Illumination: | 0.01Lux @(F1.2,AGC ON), 0.028 Lux @(F2.0,AGC ON), 0 Lux with IR
Shutter time: | 1/3 s ~ 1/100,000 s
Slow shutter: | Support
Lens: | (-I3: 4,6mm; -I5: 4,6,12mm; -I8: 6,12,16mm) @F2.0 angle of view: 90°(4mm), 53.9°(6mm), 24.3°(12mm), 18.9°(16mm)
Lens Mount: | M12
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
Compression Standard
Video Compression: | H.264/MJPEG/H.264+
H.264 code profile: | Main Profile
Video bit rate: | 32Kbps~16Mbps
Max. Image Resolution: | 1920 x 1080
Frame Rate: | 50Hz: 25fps(1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Image Enhancement: | BLC/3D DNR/ROI
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Day/Night Switch: | Auto/Schedule/Triggered by Alarm In
